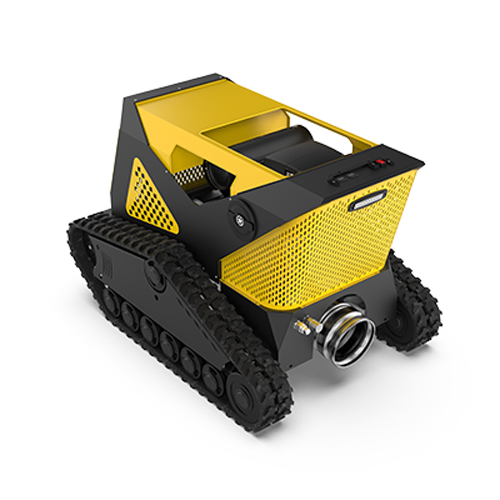

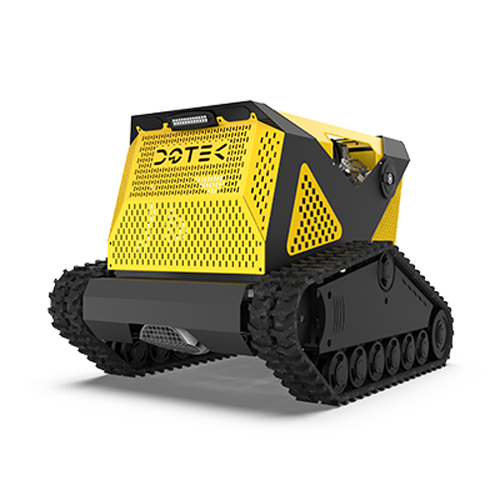

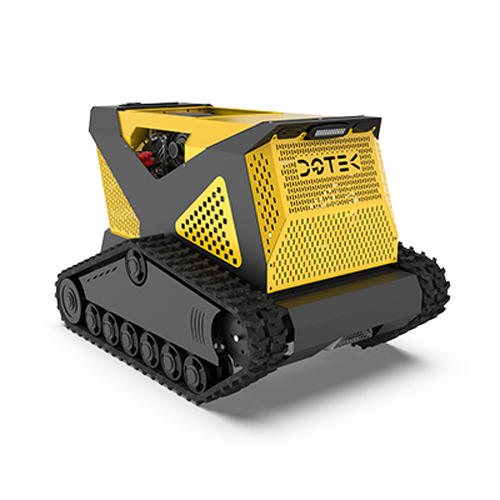

The DB Mini Drainage Robot is designed for frontline flood response, adhering to the concept of Small is Big, with a user-friendly design and revolutionary functionality for end users.
The DB Mini Drainage Robot is designed for frontline flood response, adhering to the concept of Small is Big, with a user-friendly design and revolutionary functionality for end users.
This compact robot weighs less than 500kg and can be remotely controlled for drainage and rescue operations. It efficiently pumps water down to a depth of just 2cm. Its lightweight design allows for easy transport via pickup trucks, enabling rapid deployment to rescue sites—ideal for use in streets, pedestrian tunnels, and underground garages.
Powered by a hydraulic system, the DB Mini is non-electrified, eliminating the risk of electrical leakage. Its remote control features a digital water level display, providing real-time monitoring of water level changes.
When fully fueled, the robot operates for 3-4 hours and can wade through water depths exceeding 400mm. It can also be deployed in series—either with multiple DB Mini units or alongside the DB Original, with up to four units linked together, achieving a 40-meter pumping head for deep underground applications.
Additionally, the hydraulic output of the DB Mini can power various hydraulic tools, enhancing its versatility. It can begin pumping in water as shallow as 10cm, making it highly effective for rapid flood response.
